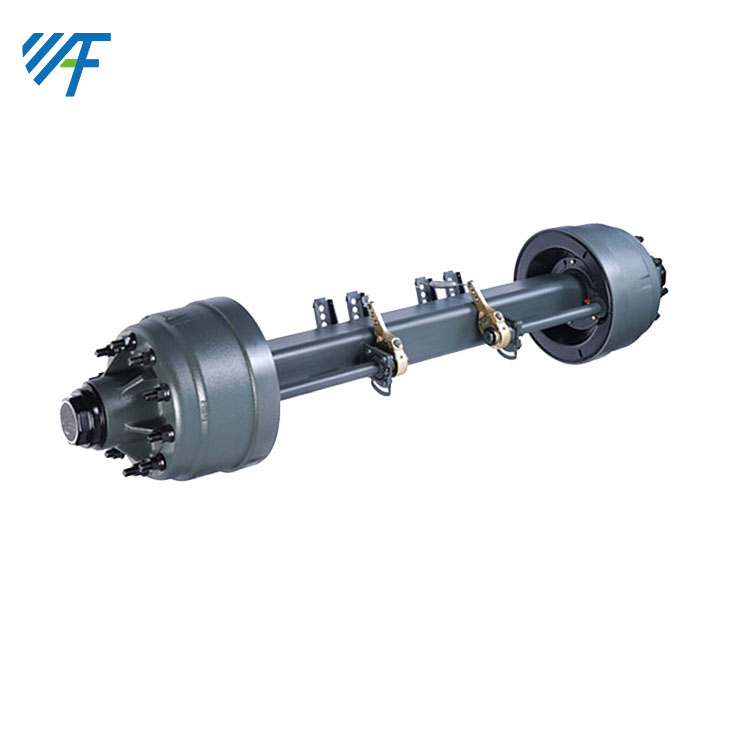

American outboard Axle
American outboard Axle
American outboard Axle

Product description

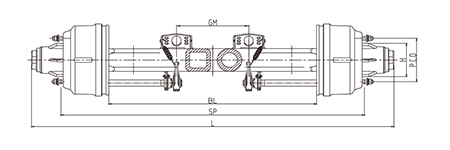

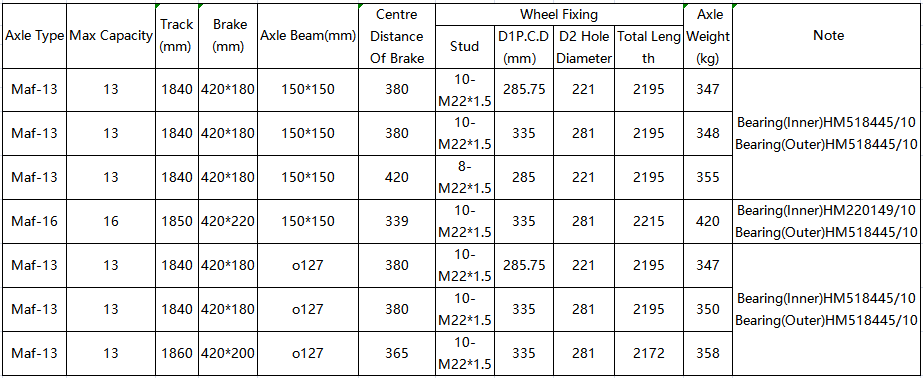

American outboard axle specification

Axle Type

Max Capacity

Track
(mm)

 Brake
(mm)

Axle Beam(mm)

Centre Distance
Of Brake Chamber(mm)

Wheel Fixing

 Axle Weight
(kg)

 Note

Stud

D1P.C.D
(mm）

D2 Hole Diameter

Total Length
(mm)

Maf-13

13

1840

420*180

150*150

380

10-M22*1.5

285.75

221

2195

347

Bearing(Inner)HM518445/10
Bearing(Outer)HM518445/10

Maf-13

13

1840

420*180

150*150

380

10-M22*1.5

335

281

2195

348

Maf-13

13

1840

420*180

150*150

420

8-M22*1.5

285

221

2195

355

Maf-16

16

1850

420*220

150*150

339

10-M22*1.5

335

281

2215

420

Bearing(Inner)HM220149/10
Bearing(Outer)HM518445/10

Maf-13

13

1840

420*180

o127

380

10-M22*1.5

285.75

221

2195

347

Bearing(Inner)HM518445/10
Bearing(Outer)HM518445/10

Maf-13

13

1840

420*180

o127

380

10-M22*1.5

335

281

2195

350

Maf-13

13

1860

420*200

o127

365

10-M22*1.5

335

281

2172

358


Product description

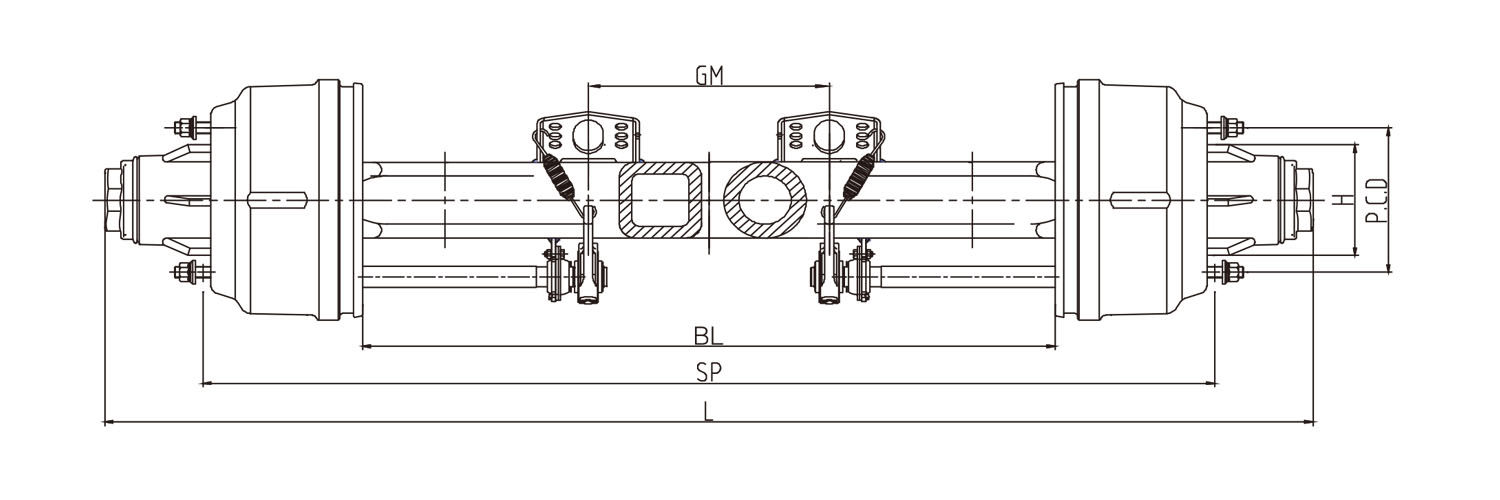

American outboard axle specification
