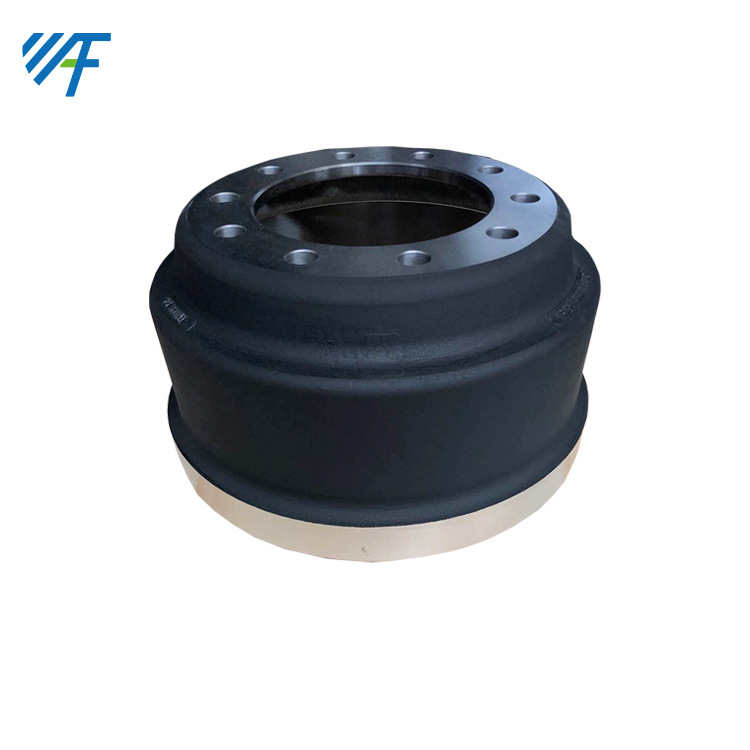

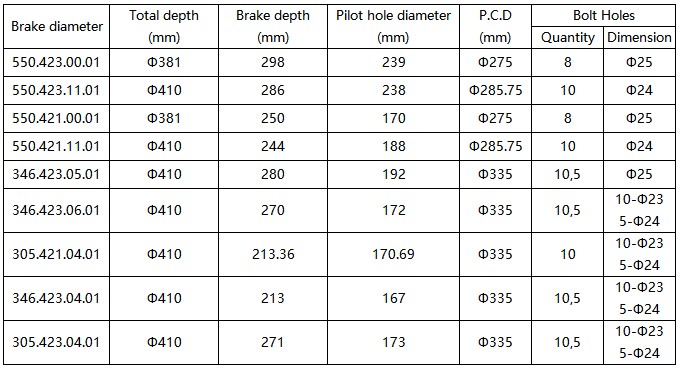

Brake drum specification
| Brake diameter | Total depth (mm) | Brake depth (mm) | Pilot hole diameter (mm) | P.C.D (mm) | Bolt Holes | |
| Quantity | Dimension | |||||
| 550.423.00.01 | Φ381 | 298 | 239 | Φ275 | 8 | Φ25 |
| 550.423.11.01 | Φ410 | 286 | 238 | Φ285.75 | 10 | Φ24 |
| 550.421.00.01 | Φ381 | 250 | 170 | Φ275 | 8 | Φ25 |
| 550.421.11.01 | Φ410 | 244 | 188 | Φ285.75 | 10 | Φ24 |
| 346.423.05.01 | Φ410 | 280 | 192 | Φ335 | 10,5 | Φ25 |
| 346.423.06.01 | Φ410 | 270 | 172 | Φ335 | 10,5 | 10-Φ23 5-Φ24 |
| 305.421.04.01 | Φ410 | 213.36 | 170.69 | Φ335 | 10 | 10-Φ23 5-Φ24 |
| 346.423.04.01 | Φ410 | 213 | 167 | Φ335 | 10,5 | 10-Φ23 5-Φ24 |
| 305.423.04.01 | Φ410 | 271 | 173 | Φ335 | 10,5 | 10-Φ23 5-Φ24 |
Brake drum specification
