Product description

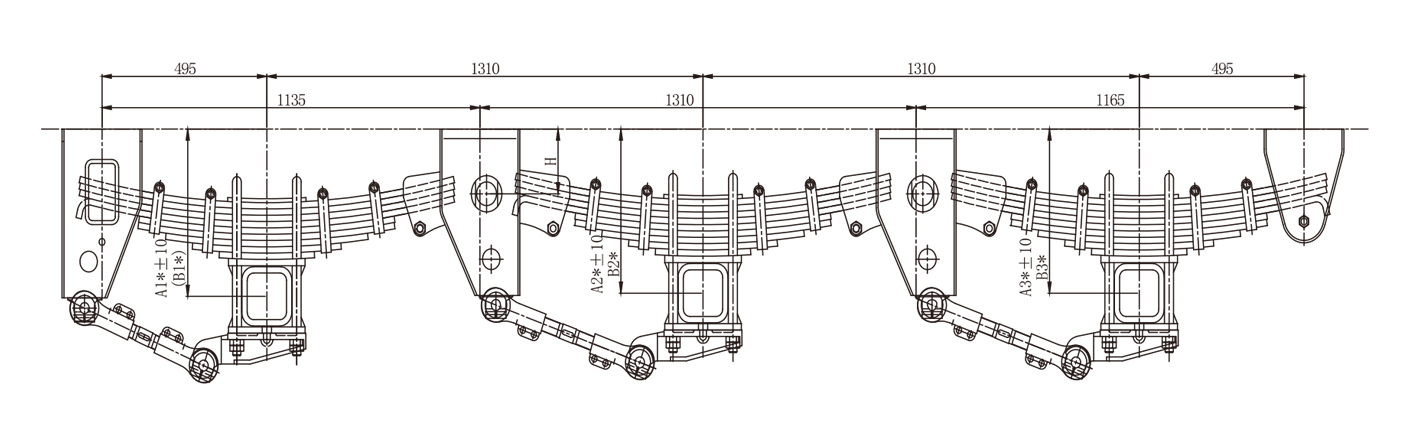

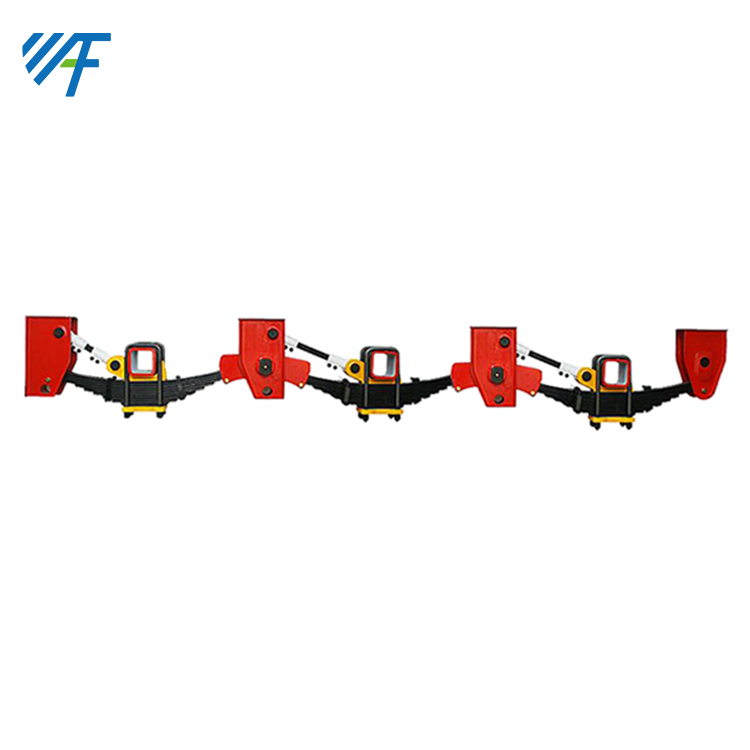

Tri-Axle Underslung Suspension with Ten Leaf Springs

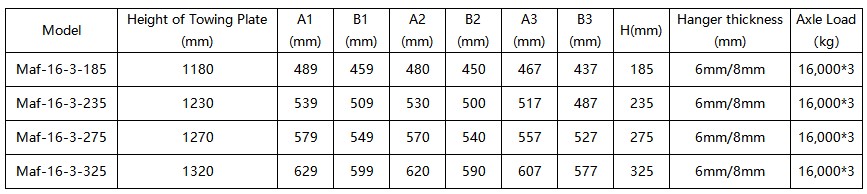

| Model | Height of Towing Plate (mm) | A1 (mm) | B1 (mm) | A2 (mm) | B2 (mm) | A3 (mm) | B3 (mm) | H(mm) | Hanger thickness (mm) | Axle Load（kg） |
| Maf-16-3-185 | 1180 | 489 | 459 | 480 | 450 | 467 | 437 | 185 | 6mm/8mm | 16,000*3 |
| Maf-16-3-235 | 1230 | 539 | 509 | 530 | 500 | 517 | 487 | 235 | 6mm/8mm | 16,000*3 |
| Maf-16-3-275 | 1270 | 579 | 549 | 570 | 540 | 557 | 527 | 275 | 6mm/8mm | 16,000*3 |
| Maf-16-3-325 | 1320 | 629 | 599 | 620 | 590 | 607 | 577 | 325 | 6mm/8mm | 16,000*3 |
Note:
1. Dimension “A”Unladen
2.Rated load size”B*=A*-30”(For reference only)
3.Optional equalizer pin: 50mm ,60mm
4.Hanger wall thickness 6mm and 8mm(Optional)
5.Spring quantity is optional
6.The company reserves the rights to improve products any time.
Product description

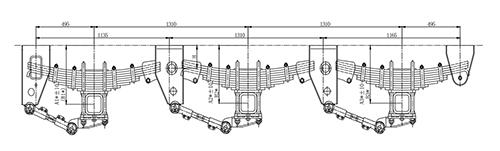

Tri-Axle Underslung Suspension with Ten Leaf Springs
Note:
1. Dimension “A”Unladen
2.Rated load size”B*=A*-30”(For reference only)
3.Optional equalizer pin: 50mm ,60mm
4.Hanger wall thickness 6mm and 8mm(Optional)
5.Spring quantity is optional
6.The company reserves the rights to improve products any time.
American type 3 axle suspension
