Product description

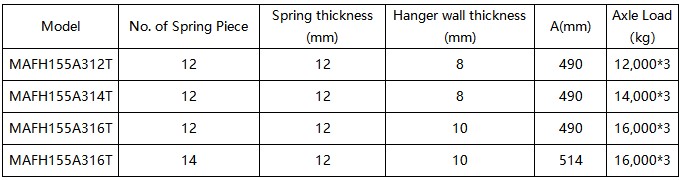

German type suspension specification
| Model | No. of Spring Piece | Spring thickness (mm) | Hanger wall thickness (mm) | A(mm) | Axle Load（kg） |
| MAFH155A312T | 12 | 12 | 8 | 490 | 12,000*3 |
| MAFH155A314T | 12 | 12 | 8 | 490 | 14,000*3 |
| MAFH155A316T | 12 | 12 | 10 | 490 | 16,000*3 |
| MAFH155A316T | 14 | 12 | 10 | 514 | 16,000*3 |
Note:

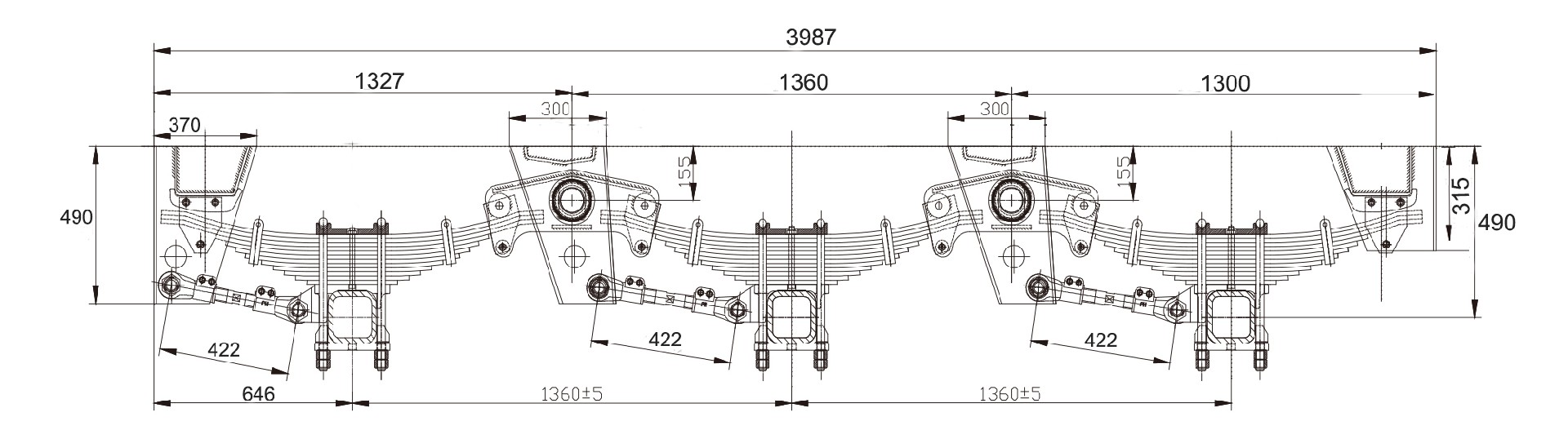

1. Dimension “A”Unladen
2.Rated load size”B*=A*-30”(For reference only)
3.Optional equalizer pin: 50mm ,60mm
4.Hanger wall thickness 6mm and 8mm(Optional)
5.Spring quantity is optional
6.The company reserves the rights to improve products any time.
Product description
German type suspension specification
Note:

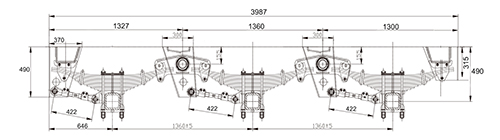

1. Dimension “A”Unladen
2.Rated load size”B*=A*-30”(For reference only)
3.Optional equalizer pin: 50mm ,60mm
4.Hanger wall thickness 6mm and 8mm(Optional)
5.Spring quantity is optional
6.The company reserves the rights to improve products any time.

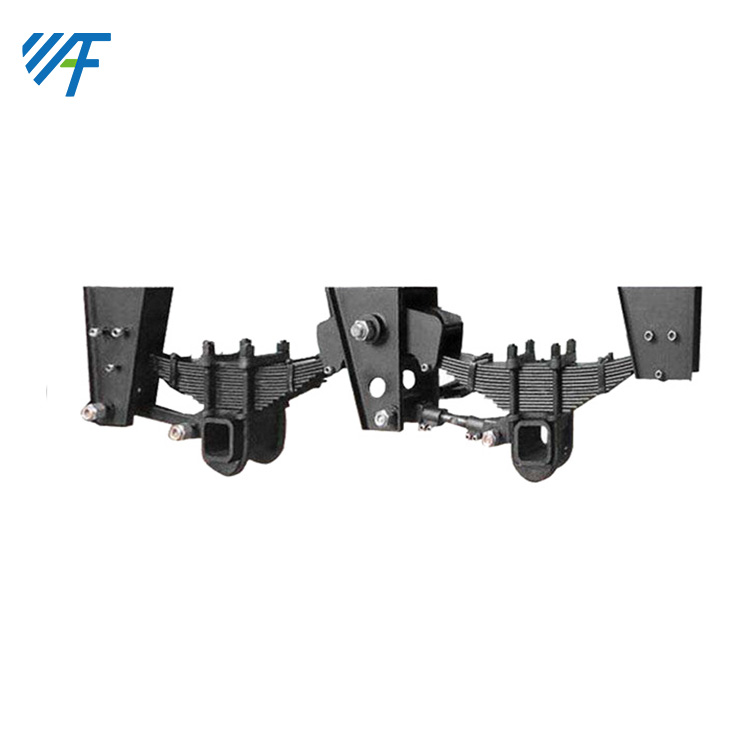

German type suspension
